Ceramic Hybrid Circuit

Hybrid circuits are primarily produced in a class 10 000 clean room using a ceramic base material.

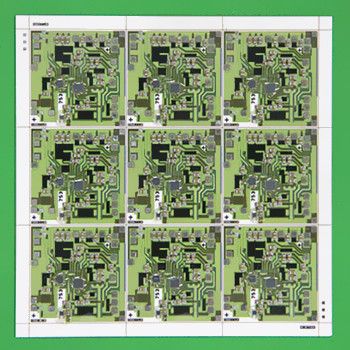

Ceramic hybrid circuit.

A hybrid integrated circuit hic hybrid microcircuit hybrid circuit or simply hybrid is a miniaturized electronic circuit constructed of individual devices such as semiconductor devices e g. Transistors diodes or monolithic ics and passive components e g. In electronics manufacturing thick film technology is used to manufacture multilayer printed circuit boards and hybrid circuits. Hybrid circuit manufacturing process.

Electronic circuit carriers made from advanced ceramic materials rubalit and alunit engineered by ceramtec have earned a reputation worldwide as the standard materials for electronic circuit carriers and their quality is acknowledged by every brand name manufacturer of hybrid circuits. Materials plating and manufacture introduction the printed circuit board has become well known even to those who have no formal knowledge of electronics. Hybrid circuit a hybrid circuit is a miniaturized electronic circuit constructed of individual devices such as transistors diodes and passive components such as resistors inductors and capacitors the resistors in a hybrid circuit can be printed on the ceramic substrate using resistive paste that is fired at high temperature to desired value. The conductor paths are screen printed directly onto ceramic substrates aluminium substrates or glass substrates.

Resistors inductors transformers and capacitors bonded to a substrate or printed circuit board pcb. The ceramic circuit material is then processed per the requirements of each job. The base material is custom ordered including composition size and hole placements required for each job.
